4.0 LPM Mini air vacuum pump

FOB Reference Price:Get Latest Price
US $7.28-10.8 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
300000 Piece/Pieces per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
AJK
Model Number:
AJK-B4002
Theory:
Vacuum Pump
Structure:
Diaphragm Pump
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric or battery power
Pressure:
High Pressure
Properties:
E-Cigarette, Other
Pipe:
5.0mm
Dimension:
73.5*32*50.6mm
Weight:
145g
Packaging & Delivery
Packaging Details
Export Standard Cartons.
Delivery Time
15-20 days once receipt payment.

Mini air vacuum pump AJK-B4002



4LPM DC High Pressure Vacuum Pump AJK-B4002

Rated Voltage

DC 6.0V

DC 12.0V

DC 24.0V

Rated Current

< 900mA

< 700mA

< 500mA

Air Flow

> 4.0LPM

> 4.0LPM

> 4.0LPM

Maximum Pressure

> 150Kpa

> 150Kpa

> 150Kpa

Vacuum Pressure

< -50Kpa

< -50Kpa

< -50Kpa

Noise

< 65dB

< 65dB

< 65dB

Pipe

Φ 5.0mm

Φ 5.0mm

Φ 5.0mm

Dimension

   73.5*32*50.6mm

Application

Strong pressure pump, widely used in humidifier, medical equipment, etc.



The Graph of Flow & Current:

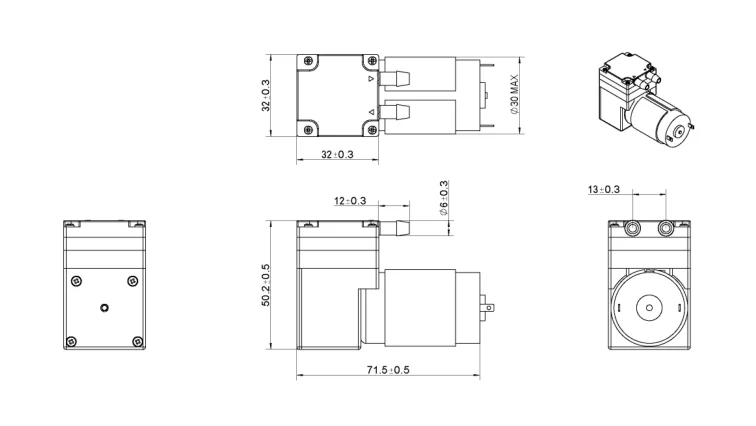

The Dimension:







Are OEM and ODM service avaibale under your request?

Our products can be custom-made, we have a professional, experienced engineers develop new products for you according to your needs or drawing.

What is the lifespan of the pump?
If continuously tested, for brush motor, the pump could reach the lifespan of 500 hours or more dependent on different spec of the pump, and for brushless motor, the pumps would work for more than 15000 hours.

Could the liquid pumps go through oil?
Yes, we have NBR material which is oil-resistant.

What is your monthly production capability?
Air Pump: 300,000 pcs per month;
Vacuum Pump: 300, 000 pcs per month;
Water Pump: 300,000 pcs per month;
Solenoid Valve: 300,000 pcs per month;
Electromagnet: 300,000 pcs per month.
